Modular Cold Region Mining Office Containers - Heavy Duty Insulated Building Kit for -40°C Arctic Construction

CATEGORY：

Expandable Container House

Product message

Product details

Detail

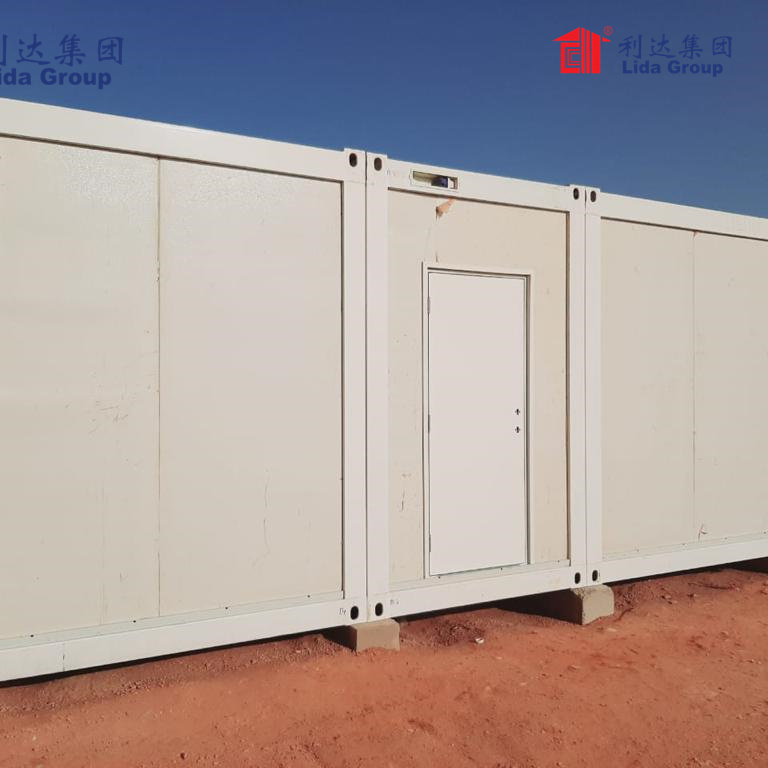

　　INTRODUCTION OF CONTAINER HOUSE
　　Container house is designed and developed according to the standard size of shipping container.It is of heatproof and waterproof.It is widely used as office,meeting room,dormitory,shop,booth,toilet,storage,kitchen,shower room and so on.
　　Lida container houses include flat pack container house,foldable container house(folding container house),expandable container house,welding container house(customized container house)and modified shipping container house(converted shipping container house).

Characters:
1)Good ability to assemble and disassemble for several times without damage.
2)Could be lifted,fixed and combined freely.
3)Heatproof and waterproof.
4)Cost saving and convenient transportation(Each 4 container house can be loaded in one standard container)
5)Service life can reach up to 10-15 years
6)We can provide the service of installation,supervision and training by extra.

Main Material:

NO.	ITEMS	DESCRIPTION
1	Material	Light steel structure material Q345
2	WALL	Sandwich panel with steel plate surface: Panel total thickness: 75mm
3	ROOF	Roof exterior: 1.2mm steel plate Insulation filling: 75mm EPS
4	WINDOWS	PVC sliding window
5	DOORS	Frame is made of aluminum, Insulation: 50mm thick EPS insulation foam

Technical Parameter:
Size:GP20,GP40 and HP40 of shipping container
Wind Resistance:Grade 12
Wall permitted loading:0.6KN/m2
Ceiling Permitted live loading:0.5 KN/m2
Wall Coefficient of thermal conductivity:K=0.442W/mk
Ceiling Coefficient of thermal conductivity:K=0.55W/m2K

Size chart
