China Cheap Prefab Modular Mining Labor Camp and Camp House
CATEGORY：
Mining Labour Camp
The Lida Mining Labor Camp exemplifies a tailored approach, delivering cost-effective prefabricated and container house building solutions. These solutions are carefully aligned with factors such as project timelines, budget constraints, site logistics, client specifications, and regulatory compliance necessities.
Product details

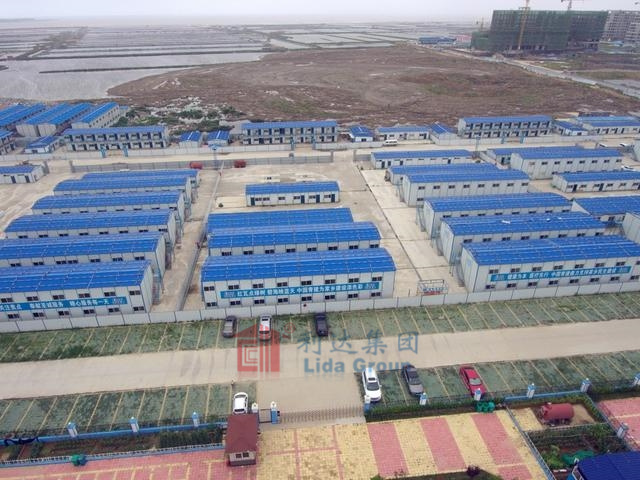

Introduction of Lida Integrated Labor Camp
Lida's Integrated Camps are versatile solutions extensively utilized in a spectrum of industries like General Contracting, Oil and Gas Fields, Hydroelectric Projects, Military Operations, and Mining Ventures. These camps are purposefully designed for both temporary and long-term deployment at various work sites.
The Lida Mining Labor Camp exemplifies a tailored approach, delivering cost-effective prefabricated and container house building solutions. These solutions are carefully aligned with factors such as project timelines, budget constraints, site logistics, client specifications, and regulatory compliance necessities.
By harnessing the capabilities of steel structures, prefab housing, and container units, Lida Group provides a comprehensive all-in-one service package for the mining labor camp, ensuring a seamless and efficient operational setup.
For more information, click here now
Detailed Specification
|
Specification |
1) 20ft: 6055*2435*2896mm |
|
2) 40ft: 12192*2435*2896mm |
|
|
3) Roof Type: Flat roof with organized internal water draining design |
|
|
4) Storey: ≤3 |
|
|
Design parameter |
1) Life span: up to 20years |
|
2) Floor Live load: 2.0KN/m2 |
|
|
3) Roof Live load: 0.5KN/m2 |
|
|
4) Wind load: 0.6KN/m2 |
|
|
5) Earthquake-resistance: Grade 8, Fire-proof: Grade 4 |
|
|
Wall panel |
1) Thickness: 75mm fiber glass sandwich panel, effective width: 1150mm |
|
2) Exterior steel sheet (standard configuration): Corrugated 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-zinc thickness≥40g/m2 |
|
|
3) Insulation layer (standard configuration): 75mm Fiber glass, density≥50kg/m3, Fire-proof standard: grade A non-flambable |
|
|
4) Interior steel sheet(standard configuration): Flat 0.4mm Aluminum-zinc color steel sheet, PE finishing coat, Color: white, Aluminum-Zinc thickness≥40g/m2 |
|
|
Roof system |
1) Steel frame & accessories: Main roof frame: cold formed steel, thickness=2.5mm, galvanized. with 4pcs galvanized lifting corners. Roof purlin: C80*40*15*2.0, galvanized. Q235B steel |
|
2) Roof panel: 0.4 or 0.5mm thickness Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum thickness≥70g/m2, 360° full connection |
|
|
3) Insulation: 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3, Grade A fire-proof, nonflammable. |
|
|
4) Ceiling board: V-170 type, 0.5mm Aluminum-zinc color steel sheet, PE finishing coat. Color: white, Aluminum-zinc thickness≥40g/m2. |
|
|
5) Industrial socket: Fixed in explosion-proof box at the top beam of the short side, with 1 main power plug for power connection between containers |
|
|
Corner pillar |
1) Cold rolled steel: 4pcs pillar with same dimension, thickness=3mm, steel grade Q235B. |
|
2) Corner pillar and main frame are joined by hexagon socket head bolt, strength: grade 8.8. Filled with Fiberglass insulation |
|
|
Floor System |
1) Steel structure & accessories: Main floor frame: cold formed steel, thickness 3.5mm, galvanization; Floor purlin:C120*40*15*2.0, galvanized. Q235B steel. Standard container is Without forklift hole, it can be added according to customer’s requirement. |
|
2) Insulation (optional): 100mm thickness Fiber glass with aluminum foil, Density=14kg/m3. Flammability: grade A, nonflammable. |
|
|
3) Bottom covering (optional): 0.25mm color steel sheet, Zinc thickness≥70g/m2. |
|
|
4) Floor board: 18mm thickness fiber cement board, Fire-proof: grade B1. Density≥1.3g/cm3 |
|
|
5) Interior Flooring: 1.5mm thickness PVC leather, Blue marble color |
|
|
Door & Window |
1) Insulated light steel door: Entrance door is W850*H2030mm, Toilet door is W700*H2030mm. |
|
2) PVC sliding window, double glass 5mm thickness, with mosquito screen and security bar. Standard window: W800*H1100mm(for 2.4meter’s container), W1130*H1100mm(for 3 meter’s container), Toilet window: W800*H500mm |
|
|
Electric system |
1) Rated power: 5.0 KW, suggestion external power source ≤3 in series. |
|
2) Technical parameters: CEE industrial plug, socket voltage 220V- 250V, 2P32A, Fixed in explosion-proof box at the top beam of the short side, the electric cable in the roof is protected by PVC pipe with CE certification; Using IP44 standard power distribution box. |
|
|
3) Electrical data: main power cable is 6 mm2, AC cable is 4 mm2, socket cable is 2.5 mm2, lighting & switch cable is 1.5 mm2. Five sockets, 1pc AC socket of 3holes 16A, 4pcs socket of 5holes 10A. 1pc single connection switch, 2pcs double tube LED light, 2*15W. |
|
|
Painting |
1) Primer painting: epoxy primer, Zinc color, thickness: 20 – 40 μm. |
|
2) Finishing paint: Polyurethane finishing coat, white color, thickness: 40-50 μm. Total paint film thickness≥80μm. Galvanized components, galvanized layer thickness≥10μm (≥80g/m2) |
Advantages of Lida Integrated Construction Labor Camp
1) Size is customized, design according to requirements.
2) Service life is up to 15 years.
3) Cost effective, the average price is from USD 60/sqm to USD 120/sqm.
4) Fast construction. From production to installation, it only needs several months.
5) Green and Environmental, energy-saving, anti-fire, anti-earthquake, water proof.
Keywords: Container House | Steel Structure | Prefabricated House
